The lineup of Chinese outboard motors Nexus is represented by two-stroke and four-stroke models of low and medium power. Nexus equipment is remarkable for its combination of low price, reliability and ease of transportation.

The most popular Nexus motors equipped with 2-stroke engines are: P T2.5BMS, P T9.9BMS, P T15BMS, P T40BMS). In the class of 4-stroke models Nexus deserves special attention: Nexus P F2.6BMS, P F5BMS, P F9.8BMS, Nexus SL F9.9S.

Most Nexus outboard motors feature manual start and tiller control. A number of models (eg push-pull P T30FWS and P T40BWS) have electric start and remote control.

In operation, four-stroke engines are more economical than four-stroke engines, in addition, they have a lower negative impact on the environment. Boat motors Nexus are designed for both fishing and recreation on the water, transportation of goods ..

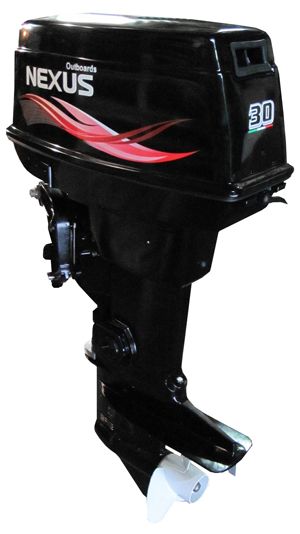

The boat motor Nexus P T30FWS has excellent technical characteristics and workmanship at a low price. If you are looking for an inexpensive, economical and reliable outboard motor with a short transom, then the Nexus P T30FWS will be the best option for you.

Description Outboard motor Nexus P T 30 FWS.

Reinforced aluminum alloy for good corrosion protection

Fixed-position tilt including dive mode

Swivel throttle handle for easy maneuverability and safety

Thermostat that controls the water cooling system

Lanyard for emergency shutdown of the engine

Lightweight 3-speed transmission mechanism (Forward-Neutral-Reverse)

Vibration reduction system for a smooth ride

Protection of the motor from starting when the gear is engaged

Adjustable steering for easy maneuverability

Electronic ignition system for easy starting

Improved manual start system

Quiet exhaust through the propeller

Fuel tank 24 l with hose

Type: hanging

Control type: remote

Boat transom height (cm): 381

Class: with propeller

Starter type: electric

Fuel tank volume (l): 24

Number of engine cylinders: 2

Engine cycle: 2

Engine displacement (cc): 703

Engine power (hp): 30

Weight (kg): 76.1

Additional characteristics: ,

Length - 645 mm (25.4 "inches)

Width - 371 mm (14.6 "inches)

Height - 1214 mm (47.8 "inches)

Transom Height - 381mm (15 "")

Weight - 76.1 kg

Cooling system - Forced water

Max. number of revolutions - 4500-5500 rpm

Idling speed - 900-1000 rpm

Engine type - 2-stroke

Number of cylinders - 2

The volume of the cylinder is 703 cubic meters. cm

Bore & Stroke - 3.15 "x 2.75"

Ignition system - CDI

Control system - Remote control

Starting system - Electric start

Gears - Forward-Neutral-Reverse

Reducer gear ratio - 2.00

Motor lifting system - Manual

Fuel tank volume - 24 L

Screw - 3-11 1/8 "x 13" inches
